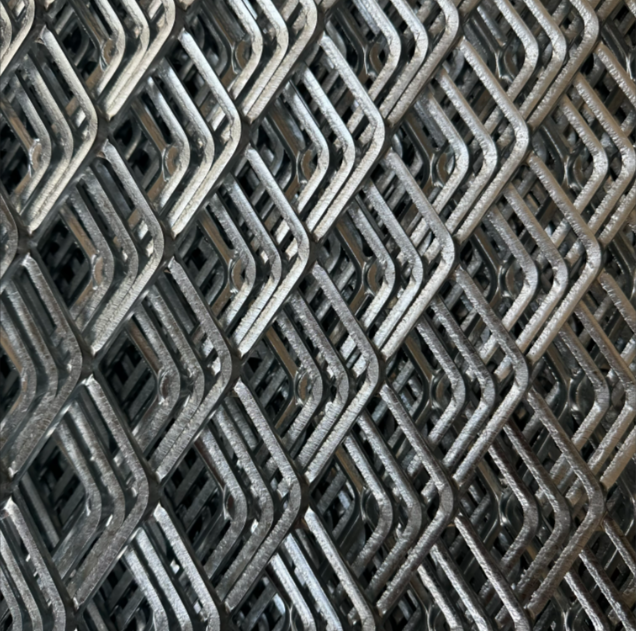

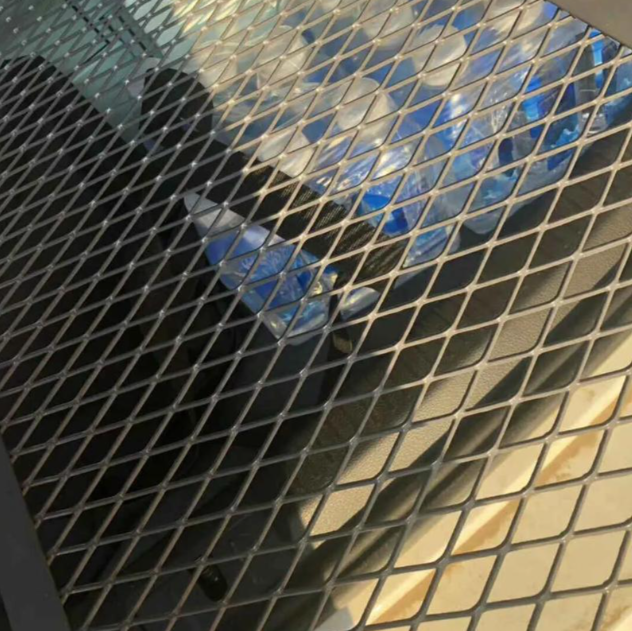

Architectural Expanded Metal Wire Mesh For Facade Cladding And Decorative Screening
Expanded Metal Wire Mesh is widely used in architectural façade applications as a decorative and functional cladding material. Produced from a single metal sheet through slitting and stretching, it forms a continuous open pattern that combines structural integrity with visual openness. In modern architecture, it is often selected not only as a covering element but also as part of the building's visual identity.
Visual Expression
A major advantage of expanded metal in façade design is its ability to create changing light and shadow effects. The diamond-shaped openings allow sunlight to pass through and shift throughout the day, creating a dynamic surface. By adjusting mesh size, strand width, and open area, designers can control transparency, shading, and privacy, making the material suitable for layered façade concepts.
Facade Integration
Expanded metal panels can be integrated into different façade systems, including framed panels, substructures, and curtain wall assemblies. They are often used as a secondary skin over building exteriors, adding depth and reducing the visual weight of large surfaces. In applications such as parking garages and commercial buildings, the mesh helps maintain airflow while providing a unified exterior appearance.
Surface and Finish Design
Surface finishing is an important part of architectural application. Powder coating, anodizing (especially for aluminum), and PVDF coatings are commonly used to achieve specific colors and textures. These finishes allow the mesh to align with the overall architectural concept, whether subtle or visually striking.
Design Application
Expanded Metal Wire Mesh is widely applied in commercial façades, parking structures, shopping centers, cultural buildings, and public infrastructure. It can be used as façade cladding, sunshade panels, balcony screens, or interior decorative partitions. By combining pattern, light control, and structural form, it becomes both a functional and aesthetic building material.
Technical Specifications
| Item |
Specification |
| Material |
Aluminum / Stainless Steel / Galvanized Steel |
| Mesh Pattern |
Diamond / Micro Opening / Custom Pattern |
| Surface Type |
Raised / Flattened |
| Open Area |
Custom Percentage |
| Panel Type |
Sheet / Framed Panel / Curtain Wall Unit |
| Coating |
Powder Coating / Anodizing / PVDF |
| Installation |
Frame / Substructure / Curtain Wall |
| MOQ |
Negotiable |
